OAJ :Observatorio AstrofĂ­sico de Javalambre
OAJ/JPLUS :The scientific instrument for the JAST/T80 telescope and for J-PLUS is T80Cam, a wide-field camera installed at the Cassegrain focus.id:OAJ/JPLUS.a
GaiaXPy base XML file. You can download here the GaiaXPy base XML file for the full OAJ/JPLUS filter set. Please, take a look to the GaiaXPy web page and additional documentation for more information.

OAJ/JPLUS.uJAVA_filter3491.443500.883499.473186.543833.41449.931318.753.24e-9OAJT80CamJ-PLUS u (filter only)
OAJ/JPLUS.uJAVA3533.323542.003542.203200.643846.68328.691347.713.24e-9OAJT80CamJ-PLUS u (full transmission)
OAJ/JPLUS.J03783782.373783.213793.383679.183887.88136.282280.254.78e-9OAJT80CamJ-PLUS g J0378 (full transmission)
OAJ/JPLUS.F0378_filter3785.673786.523797.623682.303890.82150.882353.594.92e-9OAJT80CamJ-PLUS [OII] (filter only)
OAJ/JPLUS.J03953939.373939.723938.553870.894008.7398.133571.646.9e-9OAJT80CamJ-PLUS g J0395 (full transmission)
OAJ/JPLUS.F0395_filter3947.823948.143945.753880.884017.0496.313746.947.21e-9OAJT80CamJ-PLUS Ca H+K (filter only)
OAJ/JPLUS.F0410_filter4102.224103.484101.673972.474238.19193.054274.667.62e-9OAJT80CamJ-PLUS Hdelta (filter only)
OAJ/JPLUS.J04104108.124109.444107.983975.034246.16190.804285.767.61e-9OAJT80CamJ-PLUS g J0410 (full transmission)
OAJ/JPLUS.F0430_filter4301.924303.144296.914170.614441.78196.024126.796.69e-9OAJT80CamJ-PLUS G (filter only)
OAJ/JPLUS.J04304303.294304.554298.364168.444444.34193.374124.746.68e-9OAJT80CamJ-PLUS g J0430 (full transmission)
OAJ/JPLUS.gSDSS_filter4742.944803.014702.293888.205557.971301.924000.725.33e-9OAJT80CamJ-PLUS g SDSS-like (filter only)
OAJ/JPLUS.gSDSS4789.874849.264748.473893.115599.901189.733979.565.2e-9OAJT80CamJ-PLUS g SDSS-like (full transmission)
OAJ/JPLUS.J05155140.895141.965139.675016.705269.09202.563849.524.37e-9OAJT80CamJ-PLUS g J0515 (full transmission)
OAJ/JPLUS.F0515_filter5153.125154.135151.975031.475278.82200.543840.234.34e-9OAJT80CamJ-PLUS Mgb Triplet (filter only)
OAJ/JPLUS.rSDSS_filter6247.646293.496196.695372.477073.561344.053154.272.42e-9OAJT80CamJ-PLUS r SDSS-like (filter only)
OAJ/JPLUS.rSDSS6256.636302.096206.115358.887130.991373.843148.702.41e-9OAJT80CamJ-PLUS r SDSS-like (full transmission)
OAJ/JPLUS.F0660_filter6601.656602.076604.266506.466698.42145.192722.271.87e-9OAJT80CamJ-PLUS Halpha (filter only)
OAJ/JPLUS.J06606603.916604.336606.676510.666699.34146.632722.891.87e-9OAJT80CamJ-PLUS g J0660 (full transmission)
OAJ/JPLUS.iSDSS7656.207694.367613.866716.758648.421399.822531.361.29e-9OAJT80CamJ-PLUS i SDSS-like (full transmission)
X
OAJ/JPLUS.iSDSS
Filter Description

Filter ID (?) :OAJ/JPLUS.iSDSS
Description (?) :J-PLUS i SDSS-like (full transmission)
Phot.System (?) :J-PLUS
Detector Type (?) :Photon counter
Band Name (?) :------
Obs. Facility (?) :OAJ
Instrument (?) :T80Cam
Comments (?) :Authors: J. Varela (jvarela@cefca.es); A. Marín (amarin@cefca.es);
C. Íńiguez (cinigues@cefca.es)
Date: 2016-05-18
Notes:
- Transmission curve = CCD QE * Filter Transmission * Optics * Atmosphere Transmission
- Transmission curve of the filter measured by CEFCA (central point filter)
- The 'Optics' include:
ˇ Reflectivity of the mirrors.
ˇ Transmission of the field corrector.
ˇ Transmission curve of T80Cam's entrance window.
- The model of the atmosphere is taken from Apache Point measurements.


Mathematical properties

Property Calculated Specified Unit
λref (?) : 7656.20 ------- (Angstrom)
λmean (?) : 7694.36 ------- (Angstrom)
λcen (?) : 7689.27 ------- (Angstrom)
λeff (?) : 7613.86 ------- (Angstrom)
λpeak (?) : 8004.00 ------- (Angstrom)
λpivot (?) : 7656.20 ------- (Angstrom)
λphot (?) : 7639.27 ------- (Angstrom)
λmin (?) : 6716.75 ------- (Angstrom)
λmax (?) : 8648.42 ------- (Angstrom)
Weff (?) : 1399.82 ------- (Angstrom)
FWHM (?) : 1480.14 ------- (Angstrom)
Af/AV (?) : 0.65 ------- ()
Fsun (?) : 122.14 ------- (erg/cm2/s/A)

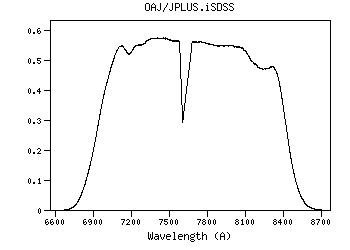

Transmission

Data file: ascii, VOTable

Reference for filter response: J-PLUS

Transmission components: Filter + Instrument + Atmosphereid:OAJ/JPLUS.iSDSS


You can download here the GaiaXPy base XML file for the full OAJ/JPLUS filter set.
Please, take a look to GaiaXPy documentation for more information.

- GaiaXPy base XML file.


Calibration properties

Vega System
PropertySpecified Calculated Unit
Zero Point (?) : ------- 1.29464e-9(erg/cm2/s/A)
  ------- 2531.36(Jy)
ZP Type (?) : Pogson
PhotCal ID (?) : OAJ/JPLUS.iSDSS/Vega


AB System
PropertySpecified Calculated Unit
Zero Point (?) : ------- 1.85704e-9(erg/cm2/s/A)
  ------- 3631.00(Jy)
ZP Type (?) : Pogson
PhotCal ID (?) : OAJ/JPLUS.iSDSS/AB


ST System
PropertySpecified Calculated Unit
Zero Point (?) : ------- 3.631e-9(erg/cm2/s/A)
  ------- 7099.57(Jy)
ZP Type (?) : Pogson
PhotCal ID (?) : OAJ/JPLUS.iSDSS/ST



Filter added: 2019-12-13 14:10:32
Last update: 2021-07-27 20:24:46
OAJ/JPLUS.iSDSS_filter7703.557743.867658.556697.018614.801420.172514.051.27e-9OAJT80CamJ-PLUS i SDSS-like (filter only)
OAJ/JPLUS.J08618610.498613.108610.168342.598892.52407.762235.459.04e-10OAJT80CamJ-PLUS g J0861 (full transmission)
OAJ/JPLUS.F0861_filter8616.378618.808616.348367.988872.46397.732236.269.03e-10OAJT80CamJ-PLUS Ca Triplet (filter only)
OAJ/JPLUS.zSDSS8964.709011.008940.287928.7410777.611299.852238.458.35e-10OAJT80CamJ-PLUS z SDSS-like (full transmission)
OAJ/JPLUS.zSDSS_filter10116.3710281.929956.658011.2712000.003148.652047.376.0e-10OAJT80CamJ-PLUS z SDSS-like (filter only)


Filter Plots (using a common λ range)

(Plot them zoomed to their own λ range)
